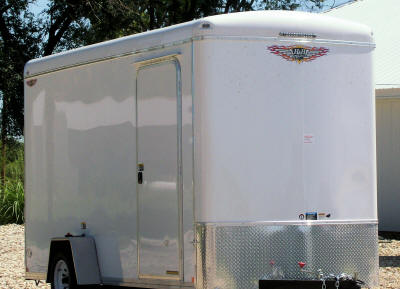

Single Axle Bumper Hitch Cargo Trailer

The Single Axle Bumper Hitch Cargo Trailer is a trailer that is a basic H&H® trailer.  The trailer can be customized to include a Rear Ramp Gate, Roof Vent, and E-Track to mention a couple of the popular optional features.  The H&H® trailers are crafted from durable materials and offer a 10-year limited warranty on frame, tongue, and crossmembers.  Request a quote today!

Single Axle Cargo Trailers are Standard with the following features

• Sizes Available: 5'x8', 5'x10', 5'x12', 6'x10', 6'x12', 6'x14', 7'x12', 7'x14'

• Wall Height: 60" on 5'x8' Model

• Wall Height: 66” on 5'x10', 5'x12', 6'x10', 6'x12', 6'x14', 7'x12', & 7'x14' Models

• Full Tubular Steel Chasis including frame

• Crossmembers on 24" Centers

• Wall Uprights on 16" Centers

• Ceiling Supports on 24" Centers

• Posi Vent System Which Creates Positive Pressure at Speed to Reduce Dust Leaks; Includes Snow/Water Trap

• Line-X® Covered Tongue and Rear Bulkhead

• Body Fully Undercoated

• Smooth, Rivetless .040 Aluminum with H&H® Exclusive with Full Contact Body System©

• 36" Radius Corner Side Escape Door with RV Style Flush Lock Latch

• Double Swing Rear Doors

• Round-top Roof Design with Custom Fiberglass Nose Cap

• Full Digital LED Lighting System Featuring H&H® Slimline LED Taillights

• .090 Aluminum Fenders

• 5.2 mm Lauan Interior Walls

• ACQ Treated 3/4" Laminated Wood Floor

• 24" Aluminum Treadplate Rock Guard with Trim

• 2" A-Frame Coupler with 2,000# Swivel-Up Jack

• 3500# Torsion Axle with 6-Bolt Pattern EZ Lube Hubs- 2990# GVWR

• ST205/75R15 Radial Tires with White Wheels

• Brass Bushed Body Hardware, Hinges, and Door Latches

• Custom Aluminum Extruded Body Trim

• 10-Year Limited Warranty on Frame, Tongue, and Crossmembers

Optional Features for Single Axle Cargo Trailers

• V-Nose

• Body Color- Silver, Red, or Black

• Spring Assisted Rear Ramp Gate- 2" Taller Than Wall Height

• Roof Vent- Square; Manually Operated; Heavy Duty Polycarbonate

• 2" Bulldog Coupler

• Electric Brake Axle, 3,500# GVWR

• Spare Wheel & Tire

• Spare Tire Mount- Internal or External

• Pair of Drop-Down Dock Legs

• E-Track Tie-Down System

• 1 Bike Kit

• 2 Bike Kit

• Black Rubberized Coin Pattern Flooring

• Aluminum Treadplate Rock Guard on Ramp Gate
